 Clima-measuring drive for motorized window opener and ventilators
Power supply: 230 V AC with cable
Connectors:
Output switch1: 230V AC/ 500W
Output switch2: 230V AC/ 500W
Measuring range of external climatic sensors:
- IN: 0...100 % rH, 0...50 °C
- Output: digital (rH, T)
- OUT: 0...100 % rH, -40...+80 °C
- Output: digital (rH, T)
- Tolerance T: ± 0,2 °C
- Tolerance rH: ± 2 %
Functions:
- the KST-10 drived with 4 output switches and the driving software ventilation elements for input and output air
- the KST-10 worked with absolute humidity and compared the measurements outdoor and indoor
- integrated realtime clock and timer
Scope of supply:

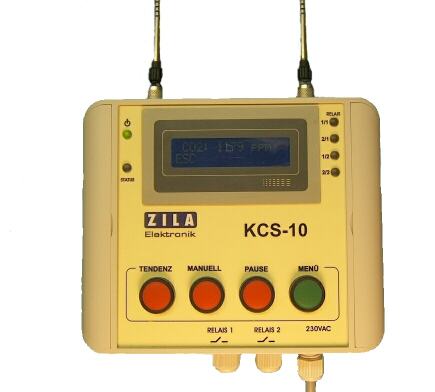

- Device KST-10 (without CO2-Sensor)
- Indoor climatic sensor (plugged sensor)
- Outdoor climatic sensor with weather protection
- Manual
|
BA_KCS-10.pdf
