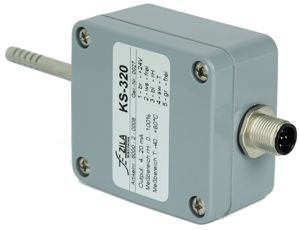

Climate Sensor KS-310 / 320
Supply Voltage: 15...36 V DC
Measuring range humidity: 0...100 % rH- Accuracy: ±1,8 % (10...90 % r.F.)
Response time: < 4 sec - Output humidity: 0..10 V (KS-310), 4...20 mA (KS-320)
- Measuring element: polymer
- dewing strenght
Measuring range temperature: -40...+80 °C
- Accuracy: ±0,5 K (5...40°C)
- Response time: < 20 sec
- Output temperature: 0..10 V (KS-310), 4...20 mA (KS-320)
- Measuring element: semiconductor
Operating Conditions:
- Temperature -40 bis +80 °C
- Protection mode
- - Sensor IP 30
- Electronic IP 65 - EMV and ESD checked: EN 50082-1, EN 50082-2
Case electronic:
- Plastic
- Dimension (LxWxH) 65 x 40 x 35
Case Sensor:
- 6 mm High-grad steel tube
|  |
Applications Building automation Cold technology
Ventilation technology Air conditioning engineering Greenhouses
|
Klimasensor KS-310 / 320
