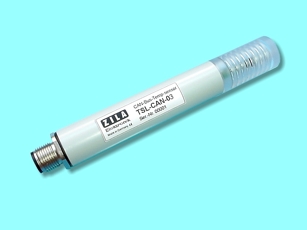

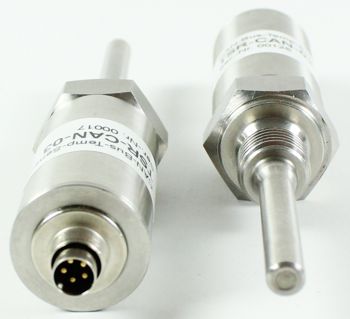

| Type | DS-CAN-01 | TSL-CAN-03 | TSR-CAN-01 |
| View | | | |
| Device class | CANopen-Sensor for pressure measurement in media | CANopen-Sensor for air temperature | CANopen-Sensor for temperature measurement in media |
| Measurand | Pressure (relative or absolute) | Temperature | Temperature |
| Measurement range | 2...4000 bar (Si on high-grade steel), -1...2 bar (Si) | -40...80 °C | -40...80 °C |
| Sensor types | Sensor cell with piezoresistive bridge circuit, temperature compensated | Semiconductor sensor with digital interface | Semiconductor sensor |
| Resolution | 10 Bit | 0,1 K | 0,2 K |
| Measuring grid | min. 5 ms | min. 5 ms | min. 5 ms |
| CAN-Protocol | CANopen 2.0A | CANopen 2.0A | CANopen 2.0A |
| Physical Layer | DIN 11898 (Highspeed-CAN until 500kBaud) | DIN 11898 (Highspeed-CAN until 500kBaud) | DIN 11898 (Highspeed-CAN until 500kBaud) |
| Features | LSS-Slave for adjustment of Node-ID and Baudrate, Node guarding, in the range from 2 to 4000 bar useable with all high-grad steel compatible media | LSS-Slave for adjustment of Node-ID and Baudrate, Node guarding | LSS-Slave for adjustment of Node-ID and Baudrate, Node guarding |
| | | | |

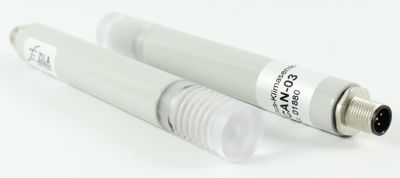

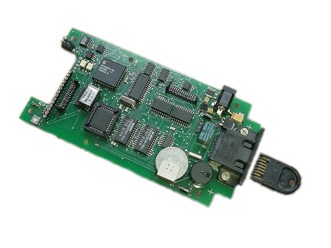

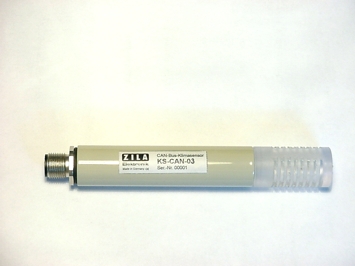

| Type | DTS-CAN-01 | KS-CAN-03 | ZILA 310 |
| View | |
|
|
| Device class | CANopen-Sensor for pressure and temperature measurement in media | CANopen-Sensor for climate measurement (air temperature and relative humidity) | CAN-Bus-Master-Board |
| Measurands Inputs and Outputs | Pressure (relative and absolute), temperature | temperature and relative humidity | 2 digital inputs, Digitaleingänge, onboard Datakey socket, 2 digital outputs, relay output 24V 4A |
| Measurement range | 2...4000 bar (Si on high-grade steel), -10...80 °C | -40...80 °C, 0...100 % rH | |
| Sensor types | "Sensor cell with piezoresistive bridge circuit, temperature compensated, Thermistor with linearization" | digital climatic sensor | |
| Resolution | Pressure: 10 Bit, Temperature +/- 0,8 K | Temperature: 0,1 K, Humidity: 0,1% | |
| Measuring grid | min. 5 ms | min 5 ms | |
| CAN-Protocol | CANopen 2.0A | CANopen 2.0A | depending on the integrated software, available: BASIC-Interpreter, PC developing environment, C-library |
| Physical Layer | DIN 11898 (Highspeed-CAN until 500kBaud) | DIN 11898 (Highspeed-CAN until 500kBaud) | DIN 11898 (Highspeed-CAN until 1MBaud) |
| Features | LSS-Slave for adjustment of Node-ID and Baudrate, Node guarding, in the range from 2 to 4000 bar useable with all high-grad steel compatible media | LSS-Slave for adjustment of Node-ID and Baudrate, Node guarding, short response time | battery buffered memory 60 kByte, real time clock, interface for LCD and keyboard (16 keys), RS232- and IIC interface |
